“Chelyabinsk Pipe–Rolling Plant” OJSC

Electric- Weld Pipe Mill Complex № 3 (“Elevation 239”)

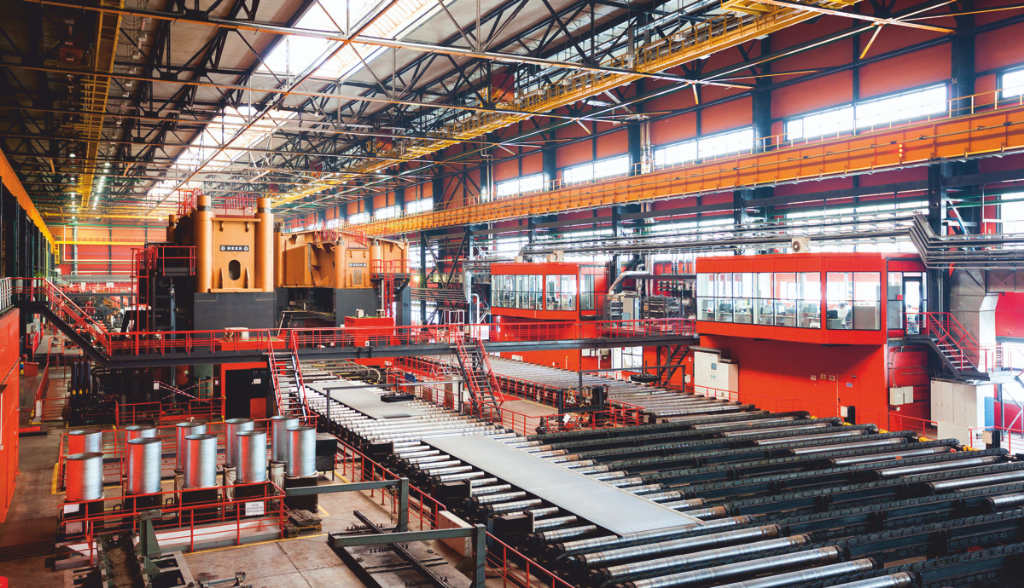

U – O – forming department

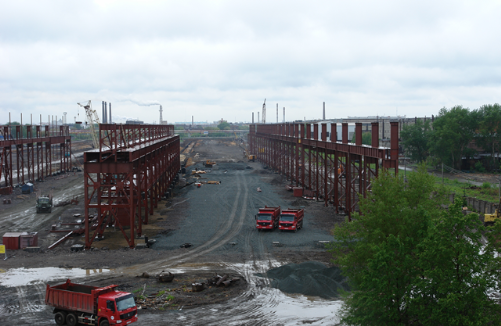

Civil–engineering and erection works, 2008

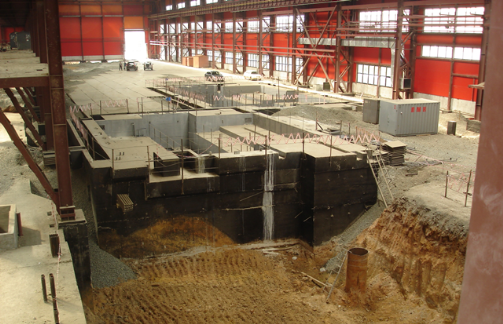

Foundation of the forming press, 2009

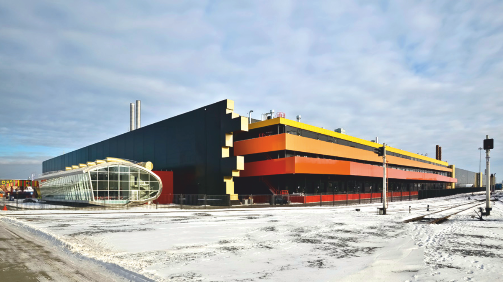

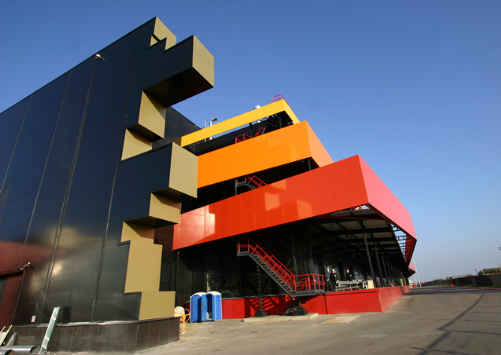

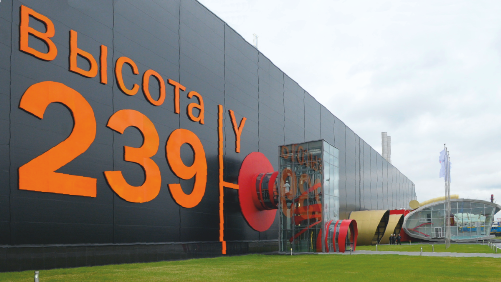

Front structure

Inauguration of the “Elevation 239” Complex, 2010

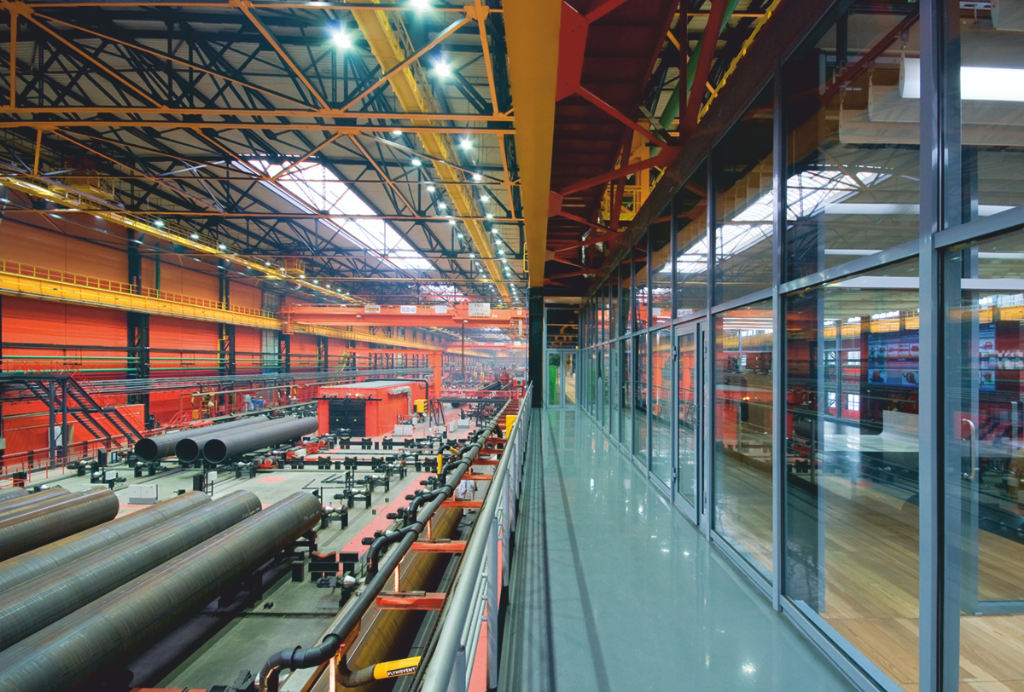

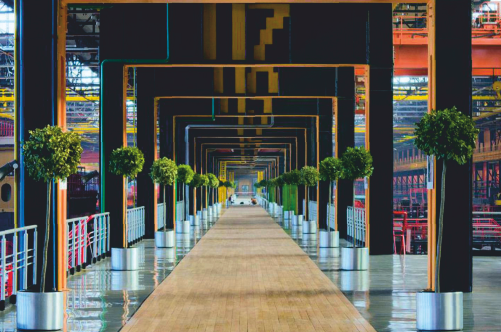

Walkway gallery

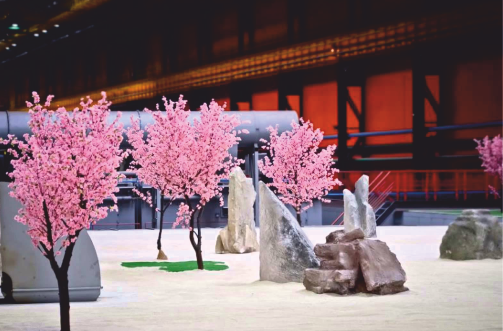

Stone garden

Characteristics of the Complex

Customer	“Chelyabinsk Pipe–Rolling Plant” OJSC
Location	Chelyabinsk, Russia
Final products	Large–diameter pipes for oil-and-gas industry
Pipe diameter, mm	530 – 1420
Length, m	10.6 – 12.4; 17.0 – 18.2
Wall thickness, mm	7 – 48
Types of products	Uncoated pipe   Pipe with inner lining   Pipe with outer coating Pipe with inner lining and outer coating
Capacity, thou. tpy	520 – 750

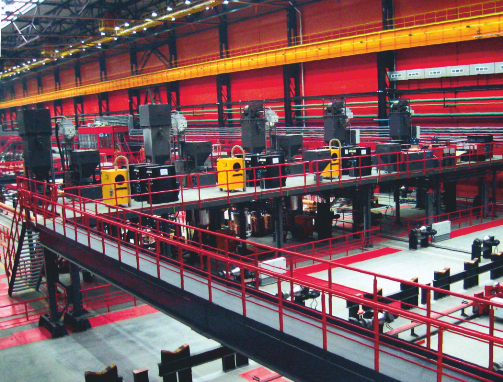

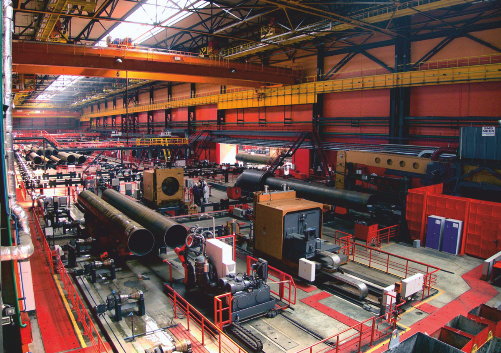

Inside welding unit

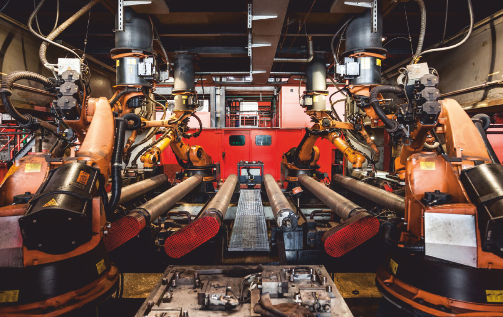

Automatic welder for welding–on of straps

Forming press 18 m

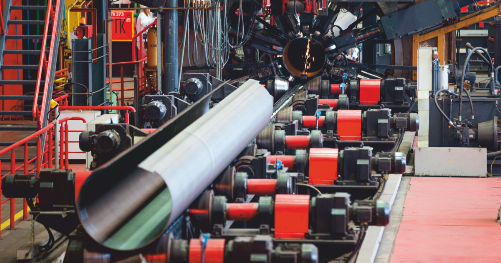

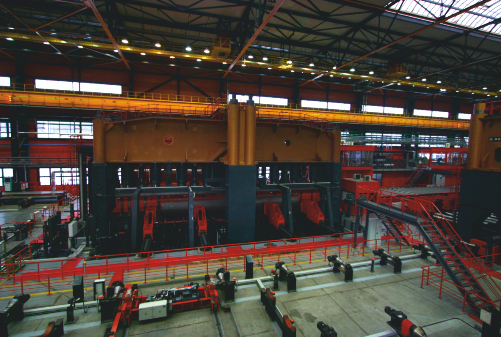

U – O – forming press

Hydraulic testing department

Cooling gallery

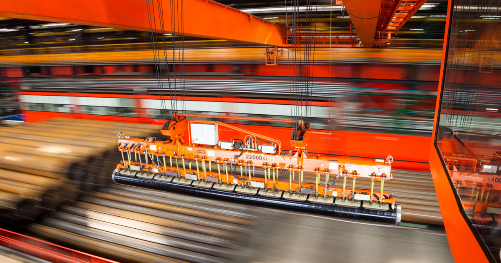

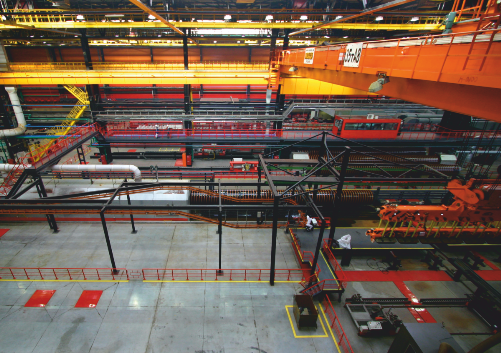

Pipe transportation by means of an overhead crane

Visual inspection gallery
