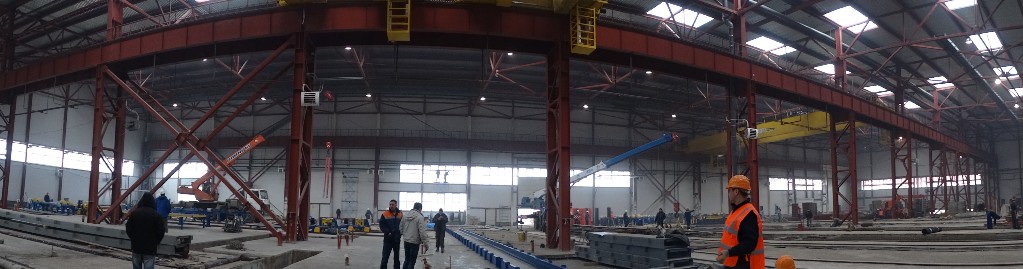

Equipment erection at the concrete coating application plant

Concrete coating plant for oil–and–gas pipes

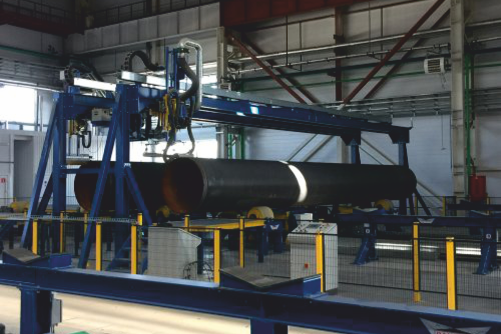

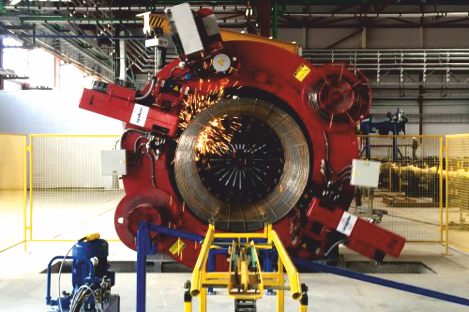

Welding of the reinforcing metalwork

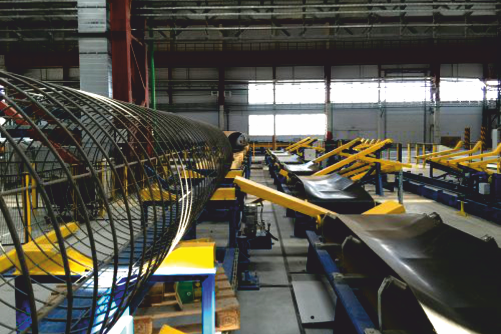

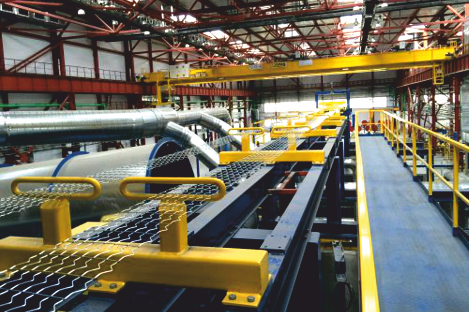

Manufacturing of reinforcing steel mesh

Characteristics of the Plant

Customer	“Pipeline Coatings and Technologies” Ltd
Location	Volzhski, Volgograd region, Russia
Final products	Large–diameter pipes for oil–and–gas industry with concrete ballast coating
Pipe diameter, mm	219 – 1420
Length, m	9 – 12.5
Concrete coating thickness, mm	25 – 125
Coating type	Concrete   coating with use of a metalwork and a mesh
Throughput capacity, km/year	50

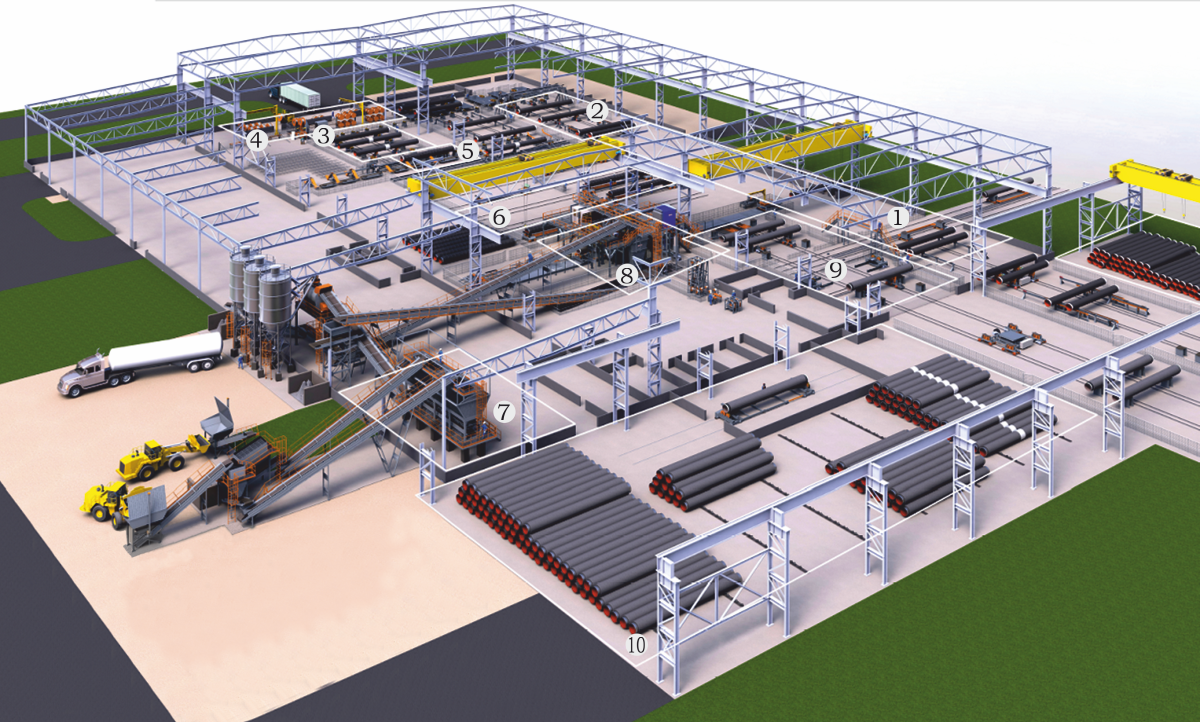

1	- Pipe entry zone	6	- Zone of the framework fixation on the pipe
2	- Insulation coating inspection and repair zone	7	- Concrete mix preparation zone
3	- Protector installation zone	8	- Zone of application of heavy–weight concrete coatings
4	- Framework manufacturing zone	9	- Pipe inspection zone and putting into storage
5	- Installation zone of a framework onto the pipe	10	- Stockyard of concrete–encased pipes

Panoramic view of the plant

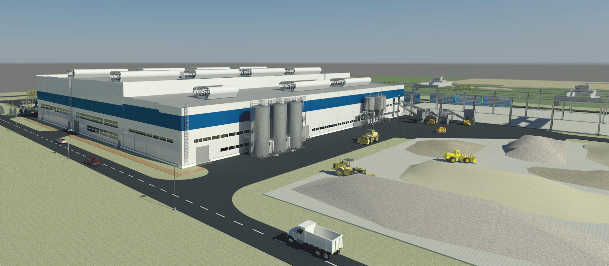

Three–dimensional model of the site

Panoramic view of the plant
Three–dimensional model of the site

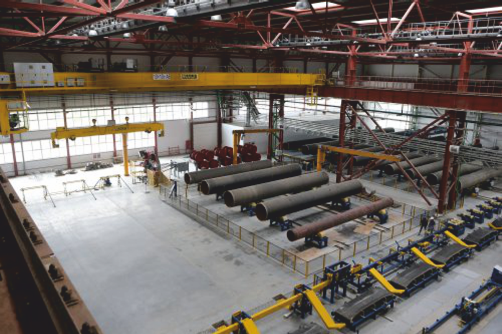

Pipe entry zone

Insulation coating inspection and repair zone

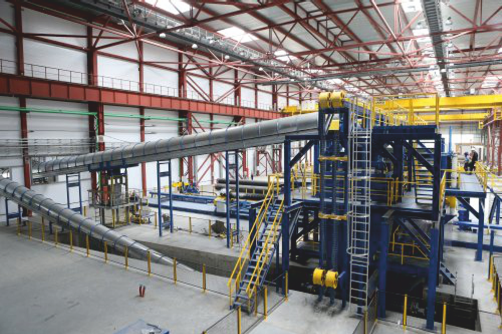

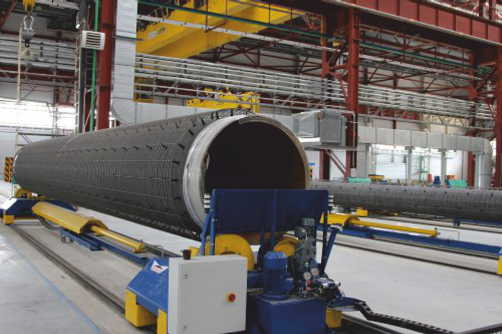

Installation zone of a framework onto the pipe

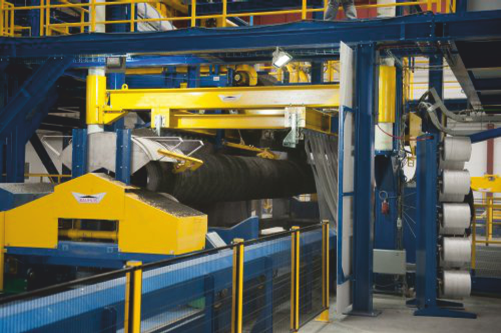

Concrete coating application process

Installation zone of a framework onto the pipe

Framework fixation on the pipe

Concrete coating application plant

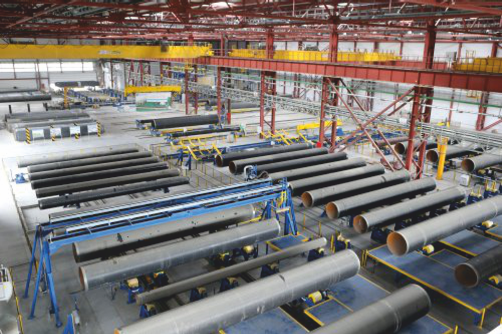

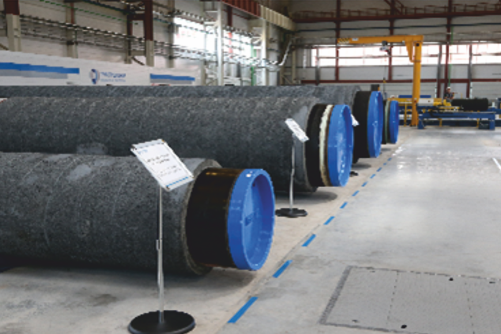

Pipes with an outer heavy–concrete coating
